Manual One For All WM 4411 Suport pe perete

Manual

START

FINISH

A

A

3

4

2

60 mm

10mm

W-B

W-AW-A

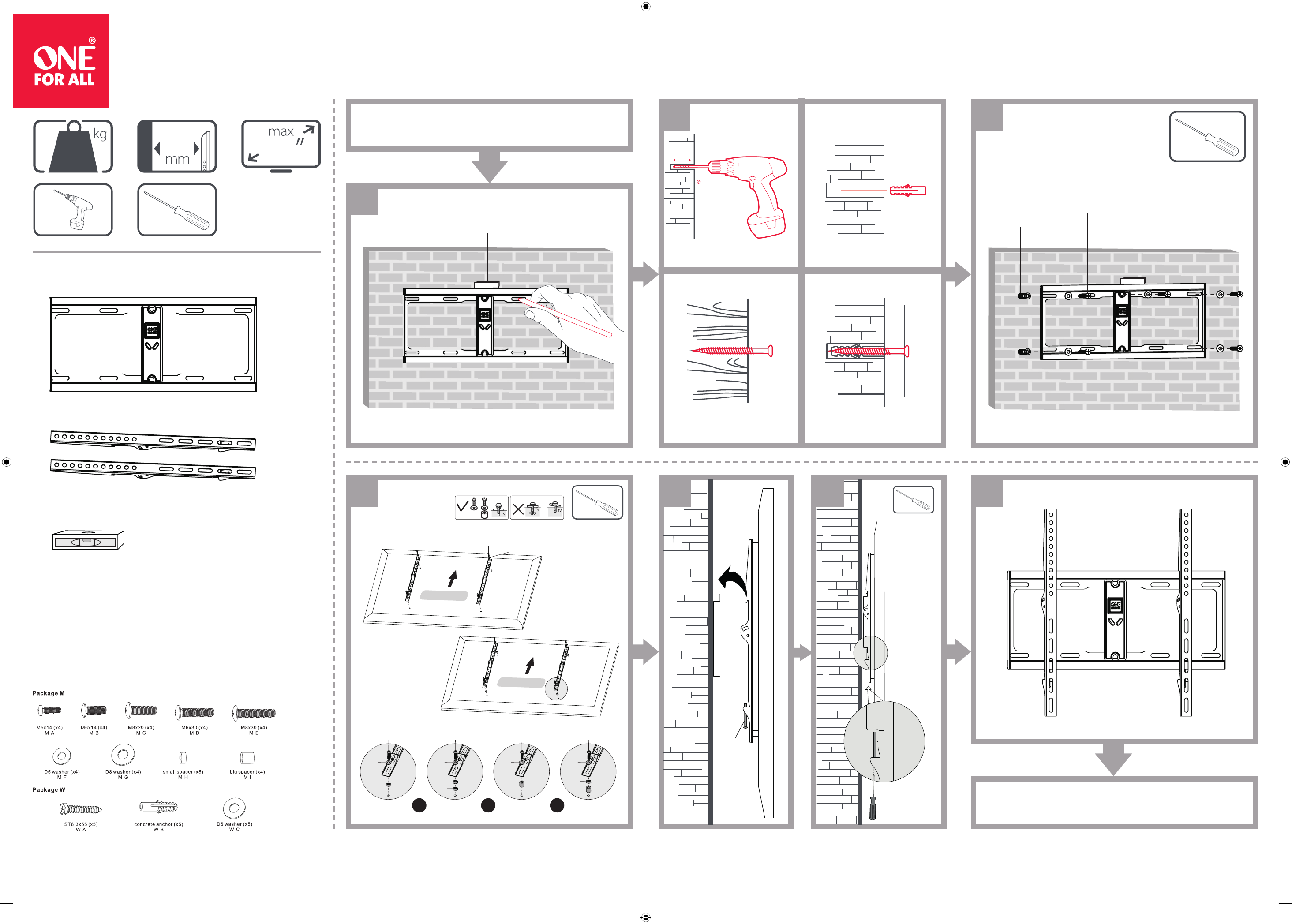

INSTALLATION MANUAL

3

Fixed Wall Mount

3. Hanging the TV onto the W all Plate

Maintenance

• Check that the bracket is secure and safe to use at regular intervals(at least every three months).

• Please contact your if you have any questions.distributor

Tighten the bottom bolts to secure the adapter brackets to the wall plate.

wall

wall

bolt

200x200/300x300

400x200/400x400

55"

MAX

40kg

(88lbs)

RATED

WM4411

CAUTION: DO NOT EXCEED RATED

LISTED WEIGHT CAPA CITY. SERIOUS

INJURY OR PROPERTY DAMAGE MAY

OCCUR!

Universal Electronics BV – Europe & International

P.O. Box 3332, 7500 DH Enschede

The Netherlands

WM4411

710590

RDN-1040316

1

100

25

60

bolt

Top of the TV

Top of the TV

M-A/M-B/M-C

M-F/M-G

M-C

M-G

M-H

M-C M-D/M-E/

M-G

M-H

M-H

M-G

M-I

M-D/M-E

M-G

M-I

M-D/M-E

M-H

or or or

Top of the TV

wall plate

A

(x1) (x2)

B

adapter bracket

bubble level(x1)

C

W-B

C

W-C

W-A

C

Component Checklist

Package W

ST6.3x55 (x5)

W-A

concrete anchor

W-B

(x5)

D6 washer

W-C

(x5)

WARNING

• This mounting bracket was designed to be installed and utilised ONLY as specified in this

manual. Improper installation of this product may cause damage or serious injury.

• This product should only be installed by someone with good mechanical ability who has

basic building experience and fully understands this manual.

• Make sure that the supporting surface will safely support the combined weight of the

equipment and all attached hardware and components.

• Always use an assistant or mechanical lifting equipment to safely lift and position the

equipment.

• Tighten screws firmly, but do not over tighten. Over tightening can cause damage to the

items, This greatly reduces their holding power.

• This product is intended for indoor use only. Using this product outdoors could lead to

product failure and personal injury.

IMPORTANT:

Ensure that you have received all parts according to the component checklist prior to installation.

If any parts are missing or faulty, telephone your local distributor for a replacement.

D (x4)

M-F

5 washer D8 (x4)

M-G

washer

M8x20

M-C

(x4)

M5x14

M-A

(x4) M6x14

M-B

(x4)

big

M-I

spacer (x4)

M6x30

M-D

(x4)

M8x30

M-E

(x4)

small spacer (x8)

M-H

TV

TV

TV

NOTE: Read the entire instruction manual before you start installation and assembly.

Tighten all s crews but do not over tighten.

· Position the adapter brackets as close as possible to the center of the TV.

· Screw the adapter brackets onto the TV.

Note: Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen.

Top of the TV

M-A/M-B/M-C

M-F/M-G

M-C

M-G

M-H

M-C M-D/M-E/

M-G

M-H

M-H

M-G

M-I

M-D/M-E

M-G

M-I

M-D/M-E

M-H

2

Package M

1

or

Top of the TV

wall plate

A

(x1) (x2)

B

adapter bracket

bubble level(x1)

C

W-B

C

W-C

W-A

C

Component Checklist

Package W

ST6.3x55 (x5)

W-A

concrete anchor

W-B

(x5)

D6 washer

W-C

(x5)

WARNING

• This mounting bracket was designed to be installed and utilised ONLY as specified in this

manual. Improper installation of this product may cause damage or serious injury.

• This product should only be installed by someone with good mechanical ability who has

basic building experience and fully understands this manual.

• Make sure that the supporting surface will safely support the combined weight of the

equipment and all attached hardware and components.

• Always use an assistant or mechanical lifting equipment to safely lift and position the

equipment.

• Tighten screws firmly, but do not over tighten. Over tightening can cause damage to the

items, This greatly reduces their holding power.

• This product is intended for indoor use only. Using this product outdoors could lead to

product failure and personal injury.

IMPORTANT:

Ensure that you have received all parts according to the component checklist prior to installation.

If any parts are missing or faulty, telephone your local distributor for a replacement.

D (x4)

M-F

5 washer D8 (x4)

M-G

washer

M8x20

M-C

(x4)

M5x14

M-A

(x4) M6x14

M-B

(x4)

big

M-I

spacer (x4)

M6x30

M-D

(x4)

M8x30

M-E

(x4)

small spacer (x8)

M-H

TV

TV

TV

NOTE: Read the entire instruction manual before you start installation and assembly.

Tighten all s crews but do not over tighten.

· Position the adapter brackets as close as possible to the center of the TV.

· Screw the adapter brackets onto the TV.

Note: Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen.

Top of the TV

M-A/M-B/M-C

M-F/M-G

M-C

M-G

M-H

M-C M-D/M-E/

M-G

M-H

M-H

M-G

M-I

M-D/M-E

M-G

M-I

M-D/M-E

M-H

2

Package M

1

or

5a 5b 6

A

B

C

bolt

Placa de pared (x1)

Base da parede (x1)

A

Nivelador (x1)

Nível de bolha (x1)

C

soporte adaptador (x2)

Extensor(adaptador) (x2)

B

M6x30 (x4)

M-A

M8x30 (x4)

M-B

D8 Arandela (x4)

D8 arruela (x4)

M-C

perno distanciador grande (x4)

espaçador (x4)

M-D

Tarugo (x5)

bucha para concreto (x5)

W-B

ST6.3x55 (x5)

W-A

D6 Arandela (x5)

D6 arruela (x5)

W-C

Top of the TV

wall plate

A

(x1) (x2)

B

adapter bracket

bubble level(x1)

C

W-B

C

W-C

W-A

C

Component Checklist

Package W

ST6.3x55 (x5)

W-A

concrete anchor

W-B

(x5)

D6 washer

W-C

(x5)

WARNING

• This mounting bracket was designed to be installed and utilised ONLY as specified in this

manual. Improper installation of this product may cause damage or serious injury.

• This product should only be installed by someone with good mechanical ability who has

basic building experience and fully understands this manual.

• Make sure that the supporting surface will safely support the combined weight of the

equipment and all attached hardware and components.

• Always use an assistant or mechanical lifting equipment to safely lift and position the

equipment.

• Tighten screws firmly, but do not over tighten. Over tightening can cause damage to the

items, This greatly reduces their holding power.

• This product is intended for indoor use only. Using this product outdoors could lead to

product failure and personal injury.

IMPORTANT:

Ensure that you have received all parts according to the component checklist prior to installation.

If any parts are missing or faulty, telephone your local distributor for a replacement.

D (x4)

M-F

5 washer D8 (x4)

M-G

washer

M8x20

M-C

(x4)

M5x14

M-A

(x4) M6x14

M-B

(x4)

big

M-I

spacer (x4)

M6x30

M-D

(x4)

M8x30

M-E

(x4)

small spacer (x8)

M-H

TV

TV

TV

NOTE: Read the entire instruction manual before you start installation and assembly.

Tighten all s crews but do not over tighten.

· Position the adapter brackets as close as possible to the center of the TV.

· Screw the adapter brackets onto the TV.

Note: Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen.

Top of the TV

M-A/M-B/M-C

M-F/M-G

M-C

M-G

M-H

M-C M-D/M-E/

M-G

M-H

M-H

M-G

M-I

M-D/M-E

M-G

M-I

M-D/M-E

M-H

2

Package M

1

or

Top of the TV

wall plate

A

(x1) (x2)

B

adapter bracket

bubble level(x1)

C

W-B

C

W-C

W-A

C

Component Checklist

Package W

ST6.3x55 (x5)

W-A

concrete anchor

W-B

(x5)

D6 washer

W-C

(x5)

WARNING

• This mounting bracket was designed to be installed and utilised ONLY as specified in this

manual. Improper installation of this product may cause damage or serious injury.

• This product should only be installed by someone with good mechanical ability who has

basic building experience and fully understands this manual.

• Make sure that the supporting surface will safely support the combined weight of the

equipment and all attached hardware and components.

• Always use an assistant or mechanical lifting equipment to safely lift and position the

equipment.

• Tighten screws firmly, but do not over tighten. Over tightening can cause damage to the

items, This greatly reduces their holding power.

• This product is intended for indoor use only. Using this product outdoors could lead to

product failure and personal injury.

IMPORTANT:

Ensure that you have received all parts according to the component checklist prior to installation.

If any parts are missing or faulty, telephone your local distributor for a replacement.

D (x4)

M-F

5 washer D8 (x4)

M-G

washer

M8x20

M-C

(x4)

M5x14

M-A

(x4) M6x14

M-B

(x4)

big

M-I

spacer (x4)

M6x30

M-D

(x4)

M8x30

M-E

(x4)

small spacer (x8)

M-H

TV

TV

TV

NOTE: Read the entire instruction manual before you start installation and assembly.

Tighten all s crews but do not over tighten.

· Position the adapter brackets as close as possible to the center of the TV.

· Screw the adapter brackets onto the TV.

Note: Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen.

Top of the TV

M-A/M-B/M-C

M-F/M-G

M-C

M-G

M-H

M-C M-D/M-E/

M-G

M-H

M-H

M-G

M-I

M-D/M-E

M-G

M-I

M-D/M-E

M-H

2

Package M

1

or

Top of the TV

wall plate

A

(x1) (x2)

B

adapter bracket

bubble level(x1)

C

W-B

C

W-C

W-A

C

Component Checklist

Package W

ST6.3x55 (x5)

W-A

concrete anchor

W-B

(x5)

D6 washer

W-C

(x5)

WARNING

• This mounting bracket was designed to be installed and utilised ONLY as specified in this

manual. Improper installation of this product may cause damage or serious injury.

• This product should only be installed by someone with good mechanical ability who has

basic building experience and fully understands this manual.

• Make sure that the supporting surface will safely support the combined weight of the

equipment and all attached hardware and components.

• Always use an assistant or mechanical lifting equipment to safely lift and position the

equipment.

• Tighten screws firmly, but do not over tighten. Over tightening can cause damage to the

items, This greatly reduces their holding power.

• This product is intended for indoor use only. Using this product outdoors could lead to

product failure and personal injury.

IMPORTANT:

Ensure that you have received all parts according to the component checklist prior to installation.

If any parts are missing or faulty, telephone your local distributor for a replacement.

D (x4)

M-F

5 washer D8 (x4)

M-G

washer

M8x20

M-C

(x4)

M5x14

M-A

(x4) M6x14

M-B

(x4)

big

M-I

spacer (x4)

M6x30

M-D

(x4)

M8x30

M-E

(x4)

small spacer (x8)

M-H

TV

TV

TV

NOTE: Read the entire instruction manual before you start installation and assembly.

Tighten all s crews but do not over tighten.

· Position the adapter brackets as close as possible to the center of the TV.

· Screw the adapter brackets onto the TV.

Note: Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen.

Top of the TV

M-A/M-B/M-C

M-F/M-G

M-C

M-G

M-H

M-C M-D/M-E/

M-G

M-H

M-H

M-G

M-I

M-D/M-E

M-G

M-I

M-D/M-E

M-H

2

Package M

1

or

Wallmount WM4411_710590.indd 2 04-03-16 09:48

Evaluare

Mai multe despre acest manual

Înțelegem că este plăcut să aveți un manual pe hârtie pentru One For All WM 4411 Suport pe perete. Puteți oricând descărca manualul de pe site-ul nostru web și îl puteți imprima singur. Dacă doriți să aveți un manual original, vă recomandăm să contactați One For All. S-ar putea să ofere un manual original. Căutați manualul dvs. One For All WM 4411 Suport pe perete într-o altă limbă? Alegeți limba preferată pe pagina noastră de pornire și căutați numărul de model pentru a vedea dacă îl avem disponibil.

Specificații

Toate manualele pentru One For All Suporturi pe perete
Mai multe manuale pentru Suporturi pe perete

Întrebări frecvente despre One For All WM 4411 Suport pe perete

Echipa noastră de asistență caută informații utile despre produs și răspunde la întrebările frecvente. Dacă descoperiți o inexactitate în întrebările frecvente, vă rugăm să ne anunțați utilizând formularul de contact.

Produse asemanatoare

Manual

One For All WM 4611 Suport pe perete

Manual

One For All SV 7112 Suport pe perete

Manual

One For All WM 6221 Suport pe perete

Manual

One For All WM 6621 Suport pe perete

Manual

One For All WM 2151 Suport pe perete

Manual

One For All SV 7311 Suport pe perete

Manual

One For All WM 5221 Suport pe perete

Manual

One For All SV 6610 Suport pe perete

Categorii relevante
