Manual Güde DHH 1100/13 TEZ Mașină de spintecat

Manual

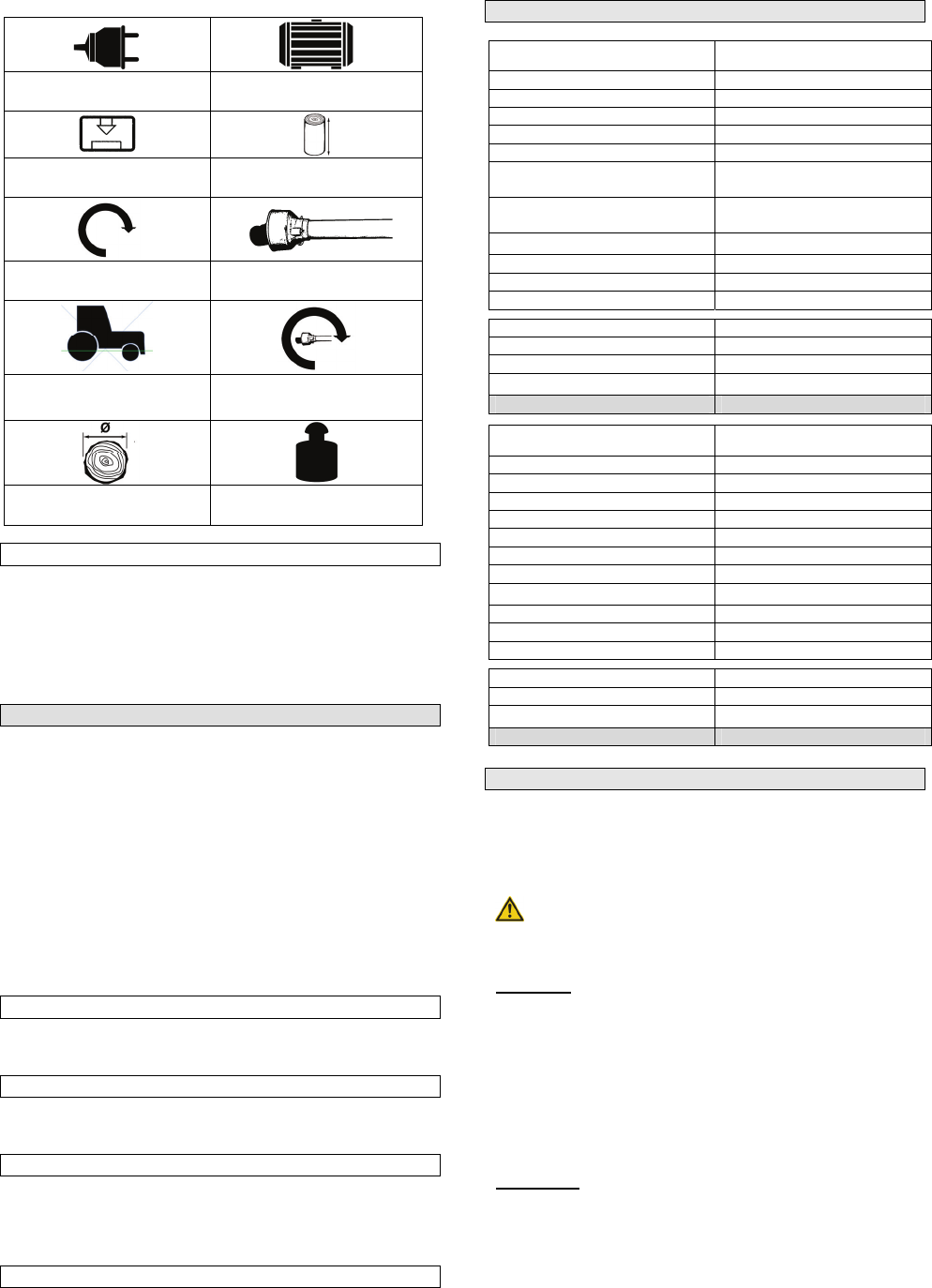

Technical specifications:

Voltage/frequency

Engine power

Rated splitting force

Max. length of split wood

Output shaft revolutions

output shaft

operating performance

Output shaft revolutions –

output shaft

Max. diameter of split wood

Weight

Use as designated

The hydraulic wood splitter may only be used in an upright

position and pieces of wood may only be split in an upright

position in the fibre direction.

Any other use is considered a use in conflict with the appliance

designation. The manufacturer will not be liable for any

consequential loss – the risk will be bore by the user.

Disposal

Disposal instructions are illustrated in the form of pictograms

on the device or packaging. Description of the pictograms is

given in "Identification" chapter.

Disposal of transport packaging

Packaging protects the device against damage during

transport. Packaging materials are usually selected according

to their effect on environment and disposal methods and can

therefore be recycled.

Returning of the packaging back to circulation saves resources

and costs for packaging disposal.

Parts of the packaging (e.g. foil, styropor) may be dangerous

for children. Risk of suffocation!

Keep these parts of the packaging out of reach of children and

dispose as soon as possible.

Operating staff requirements

The operator must carefully read the Operating Instructions

before using the appliance.

Qualification

No special qualification is necessary for using the appliance

apart from detailed instruction by an expert.

Minimum age

The appliance can only be operated by persons over 18 years

of age. An exception includes youngsters operating the

appliance within their professional education to achieve

necessary skills under trainer's supervision.

Training

Using the appliance requires only appropriate instructions by a

professional or reading the Operating Instructions. No special

training necessary.

Technical specifications

DHH 1100/13 TEZ

H x W x D in mm 2,600 x 850 x 1,300 mm

Max. length of split wood 1050 mm

Max. diameter of split wood 500 mm

Max. cylinder stroke 990 mm

Rated splitting force 13 t

Forward movement speed motor 4 / 11 cm/s –

output shaft 8 / 18 cm/s

Backward movement speed Motor 7 cm/s –

output shaft 13 cm/s

Oil tank capacity app.

16 l

Mode type Electric motor + output shaft

Hydraulic pressure 210-220 bar

Weight App. 300 kg

Voltage/frequency 400 V/50 Hz

Engine power 4,5 kW (6,1 PS)

tractor power 15 PS / 11 kW

Output shaft revolutions

540 min

-

1

Art. No. 01977

DHH 1100/13 TZ

H x W x D in mm 2,600 x 850 x 1,300 mm

Max. length of split wood 1050 mm

Max. diameter of split wood 500 mm

Max. cylinder stroke 990 mm

Rated splitting force 13 t

Forward movement speed 8 / 18 cm/s

Backward movement speed 13 cm/s

Oil tank capacity app.

16 l

Mode type output shaft

Hydraulic pressure 210-220 bar

Weight App. 270 kg

Voltage/frequency output shaft

tractor power 15 PS / 11 kW

Output shaft revolutions

540 min

-

1

Art. No. 01976

Transport and storing

 The appliance may only be transported with the engine being

switched off (#01977).

 Clean the appliance properly before storing it.

 Keep the appliance in a clean and dry place.

Oil may leak during appliance transport. Please secure

the appliance properly and take measures to protect the

environment.

Transport:

 Transport by high-lift/pallet truck:

The appliance is fixed to a pallet using straps for transport

to the customer.

 Transport by a crane:

To transport the appliance by a hook, circular loops on

the casing will be used.

Never lift the appliance by its splitting knife!

Never transport the appliance in a horizontal position

(oil may leak)

Installation:

The appliance has been designed for works on flat surfaces

and it must be installed on a hard base to be appropriately

stable.

13
